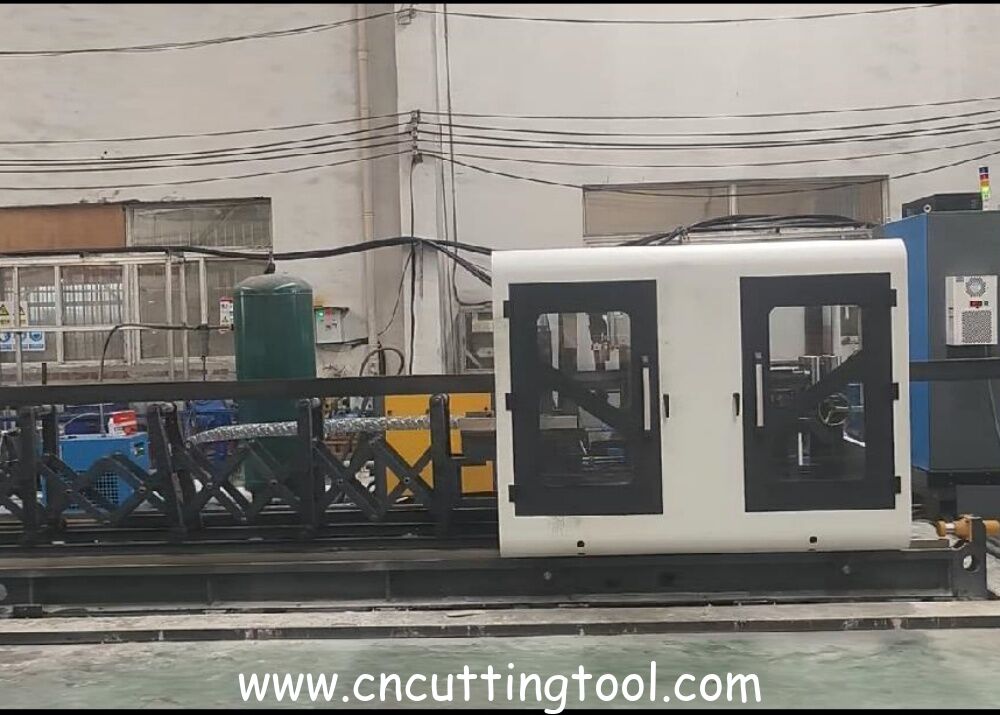

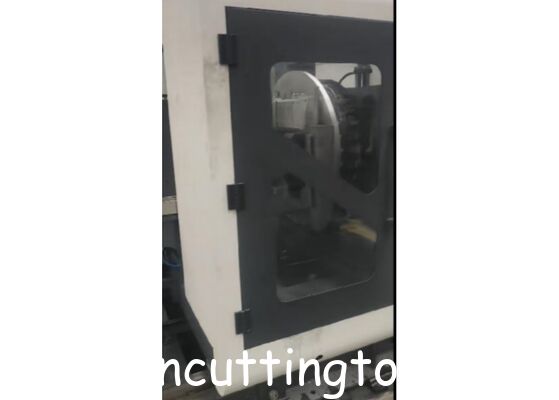

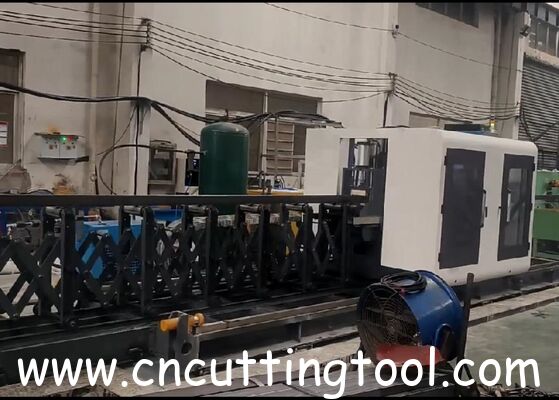

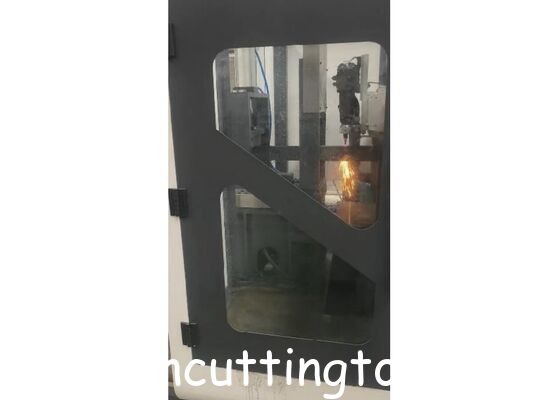

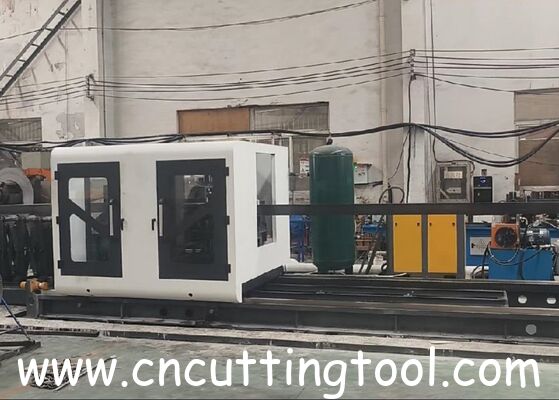

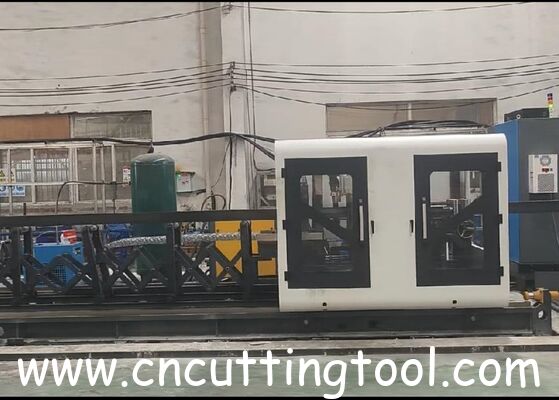

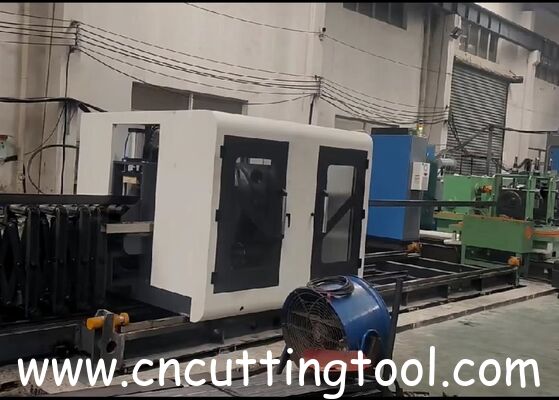

Non blades servo motor control cnc laser pipe cutting machine

Non blades servo motor control cnc laser pipe cutting machine

Laser pipe cutting machine is CNC equipment that uses high-energy laser beam to perform high-precision, high-efficiency, and non-contact cutting of metal pipes. The laser pipe cutting machine is an advanced metal processing equipment that instantly melts/vaporizes pipes (such as round pipes, square pipes, and special-shaped pipes) by focusing the fiber laser beam, and cooperates with the CNC system to achieve complex contour cutting. Compared with traditional punching or plasma cutting, its advantages are: high precision, small thermal impact, no need to open molds, and high automation integration.

Cutting steel pipe materials and product range:

Cutting steel pipe material: Q195 Q235 Q355

Product range: round tube: diameter range 90-360mm, thickness range: 0.8-7mm

Square tube: Square tube range F60*60-F300*300mm, thickness range: 0.8-7mm

Rectangular tube: square tube range J80*100-J200*300mm, thickness range: 0.8-7mm

Production line feeding direction: feeding;

Highly available:

Height from the bottom of the saw seat to the rolling bottom line mm (the lowest point of the tube);

Sawing steel pipe length: 1000mm～12000mm;

Length tolerance: 6000±1.5mm (requires production line speed fluctuation not to exceed 5%);

Burr height after cutting: Max: 0.2 mm;

On-site voltage AC380V, 5W, 3PH, 50HZ
